녹색 건물, 낮은 탄소 방출
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Runpaq |
| 인증: | NONE |
| 모델 번호: | S1702-DN15 |
| 최소 주문 수량: | 1000개 부분 |
| 가격: | USD14/piece (500-1000 pieces) , USD10.5 (>1000 pieces) |
| 포장 세부 사항: | 탄소 + 팔레트 |
| 배달 시간: | 15-21 일 |
| 지불 조건: | D/P, T/T, L/C, D/A, 서부 동맹 |
| 공급 능력: | 200000은 / 달에서 설정합니다 |
| 벨브 몸통 물자: | 놋쇠, 스테인레스 강 SS304, 316 | 일 현재: | <80 mA=""> |
|---|---|---|---|
| 일 전압: | DC3-6V / DC12V / AC85-230VAC | 압력 등급: | PN10, 10개 바, 1.0 Mpa, 150 psi |
| 열린 / 종료 시간: | <13 S=""> | 토크: | 2.5 별거 안 해 |
| 힘: | 2 Ｗ | 상품 이름: | 구역 밸브 온도조절 장치 |
| 하이 라이트: | 언더플로어 온도 제어 Valves,DN40 온도 제어 Valves,DN40 중앙 난방 방식 3 포트 밸브 |
||
digital heating temperature control valves, zone valve for underfloor heating, radiator
General description

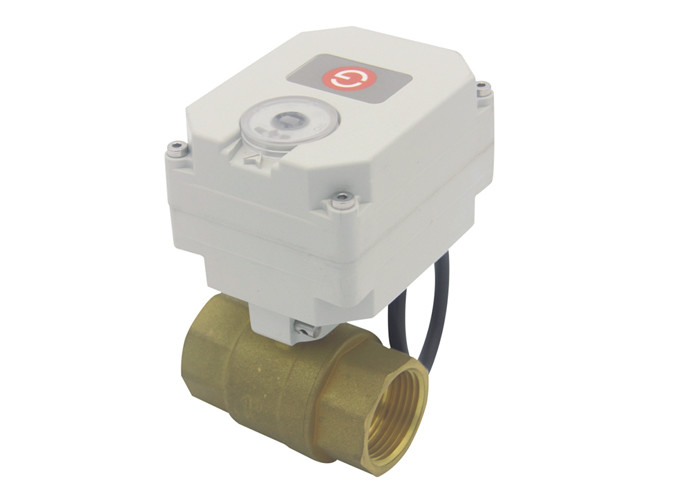

This zone control valves consists of mini motorized ball valve, motor actuator (3 wires 2 points control, or customized). The zone valve on flow, returns joined together with cylinder. The complete range of underfloor heating temperature control valves to suit many of your underfloor heating applications and can be supplied to fit most underfloor heating pipe sizes.
Our advantages
| No | Name | Material | Advantage |
| 1. | O-ring |
Import fluoro rubber (green) |
Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage. |
| 2. | Drainage | Drain just in case leakage happens | |
| 4 | 0-ring | EPDM (red) | Between nut and valve body, extra external leak proof, reduce the possibility of internal leak |
| 8. | Ball | Brass or SS304 | Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance |
| 9. | Water proof G | Avoid water into housing, seal between valve body and valve housing |
| No | Name | Material | Advantages |
| 5. | Wall thickness | 2.0mm, PN20 | |
| 6. | Teflon washer | Import teflon |
1. Import teflon tube, numerical processing to perfectly match with ball surface 2. Minimal deformation, polish surface, wearable |
| 7 | 0-ring | EPDM |
1. Good elasticity, as buffer after Teflon washer to improve seal effect 2. Reasonable structure design, ensures perfect holding margin |
Product dimensions
| Valve body material | Connection port | Diameter | D | L | H | W |
| (mm) | (Kg) | |||||
| Brass | Both female thread full diameter | DN8 | 8 | 46 | 31 | 0.357 |
| DN15 | 15 | 57 | 38 | 0.433 | ||
| DN20 | 20 | 71 | 45 | 0.513 | ||
| DN25 | 23.5 | 72 | 49 | 0.603 | ||
| Both female threaded reduced diameter | DN10 | 8 | 46 | 31 | 0.356 | |
| DN20 | 15 | 66 | 38 | 0.448 | ||
| DN25 | 20 | 72 | 47 | 0.608 | ||
| DN32 | 25 | 86 | 60 | 0.82 | ||
| 3-way vertical | DN15 | 12 | 63 | 49 | 0.434 | |
| DN20 | 15 | 66 | 53 | 0.492 | ||
| Female-male thread full port | DN15 | 15 | 63 | 38 | 0.432 | |
| Female-male thread reduce port | DN20 | 15 | 66 | 38 | 0.462 | |
| Both male thread | DN15 | 15 | 68 | 38 | 0.424 | |
| Stainless steel | Both female thread full diameter | DN8 | 8 | 46 | 31 | 0.364 |
| DN15 | 15 | 55 | 38 | 0.44 | ||
| DN20 | 20 | 71 | 45 | 0.508 | ||
| DN25 | 25 | 72 | 49 | 0.617 | ||
| Both female threaded reduce diameter | DN15 | 8 | 46 | 30.5 | 0.368 | |
| DN20 | 15 | 63 | 39 | 0.513 | ||
| DN25 | 20 | 75 | 47 | 0.608 | ||
Applications range
